Kohler Invigoration Series 5kW Steam Generator | K-5525-NA

by Kohler
SKU K-5525-NA
Save 17% Save 17%
Original price $2,721.47
Original price $2,721.47 - Original price $2,721.47
Original price $2,721.47
Current price $2,267.89
$2,267.89 - $2,267.89
Current price $2,267.89

In Stock & Ready to Ship

All orders are shipped within 1 - 2 business days. Product ETA 5 - 7 business days.

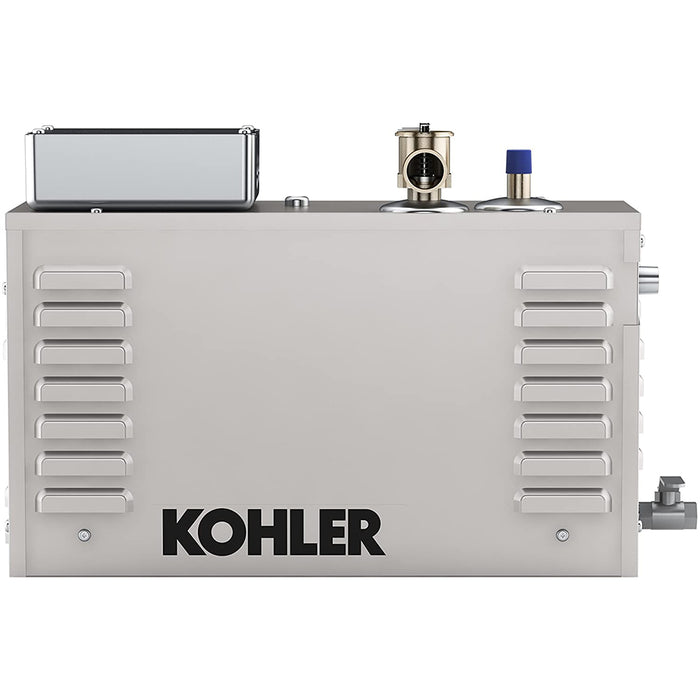

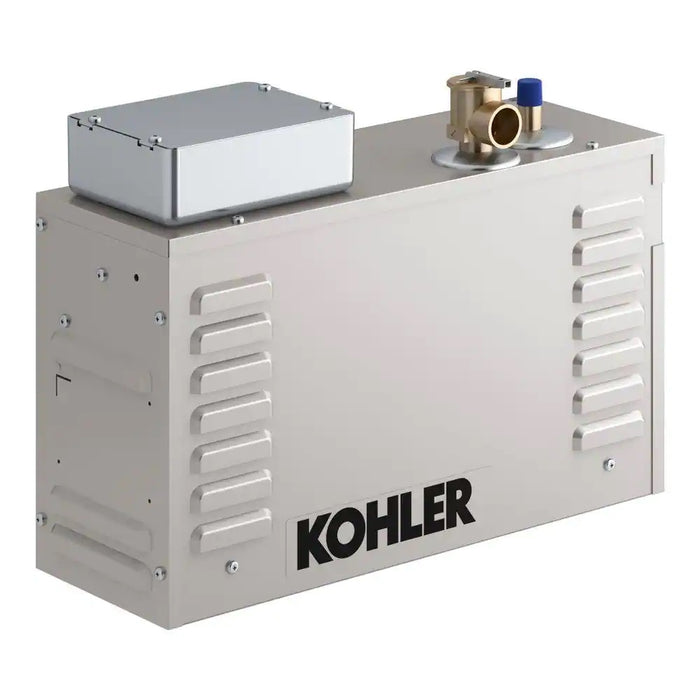

Kohler Invigoration Series 5kW Steam Generator

The Kohler Invigoration K5525NA 5kW steam shower generator featuring Kohlers Fast Response Technology is engineered to power steam rooms up to 84 cubic feet CF

Required Control kit Adapter kit and drain pan sold separately


Escape to the soothing comfort of your private steam bath ready in just 60 seconds With the press of a button this 5 kilowatt steam generator delivers the purifying benefits of steam including respiratory relief and cleansing the body of toxins and impurities to your shower stall or custom shower environment

FastResponse Technology

Invigoration Series steam generators produce steam within one minute of pushing the power button

Constant Steam

This series is designed to produce steam at a consistent rate which greatly minimizes temperature fluctuations

Power Clean Feature

At the touch of a button water flushes sediment out of the generator through the steam head No manual flushing required

Intuitive Operation

The interface is easy to read and use with clear function indicators for controlling operation time and temperature


The Invigoration Series uses approximately one gallon of water per 20minute session which is significantly less water than a traditional shower experience

Auto Shutoff

To ensure safety the system automatically shuts down after 20 minutes if not reactivated by the user

Durable Construction

The generator case is constructed of insulated stainless steel which maintains the temperature while ensuring the case is safe to the touch

Peace of Mind

Kohler offers a Three Year Limited Warranty on steam generators and a Five Year Limited Warranty on controls

Required Control kit Adapter kit and drain pan sold separately


  • Insulated Stainless Steel
  • Corrosion Resistant
  • Tarnish Resistant
  • Fast Response Technology Steam in 60 seconds
  • One touch automatic cleaning
  • Maintains Temperature
  • Ecofriendly
  • Safe to the Touch
  • Available in 240V
  • 1925 W 489mm x 85 D 216mm x 125 H 317mm
  • For steam rooms up to 84 cu ft
  • 3 Year Limited Warranty


  • Steam Generator
  • Installation Operation Manual
  • 3 Year Limited Warranty


K5557 or K5548k1

K5559 Small drain pan





Kilowatt Rating

5.0 KW

Maximum Cubic Feet

84 CF

Heater Weight

29 lbs

240V Amperage

27 Amps


19.25" (489mm)


8.5" (216mm)


12.5" (318mm)
